TT TOUGHPOWER GRAND 750W FULL-MODULAR ATX 80+ GOLD RGB (066713)

Product Number:
POWER-PS-TPG-0750FPCGUS-R
Manufacturer:
Thermaltake

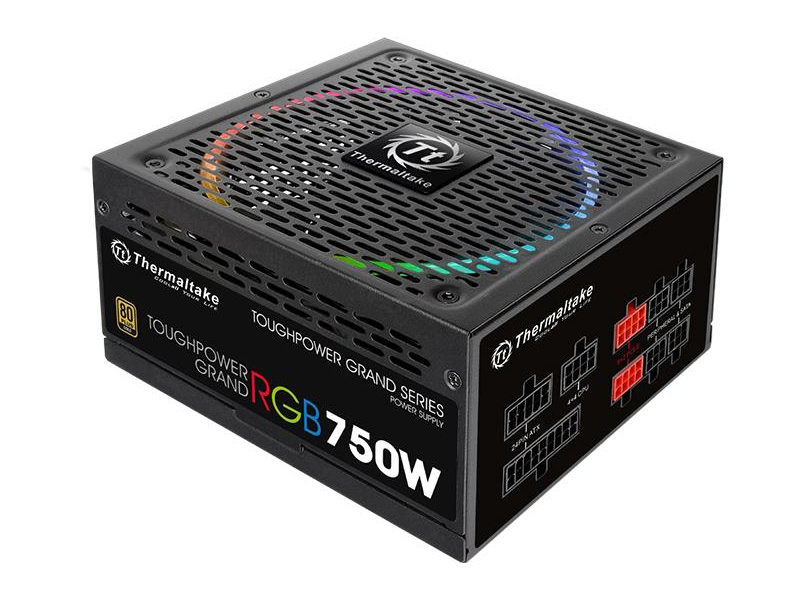

Toughpower Grand RGB 750W Gold Fully Modular

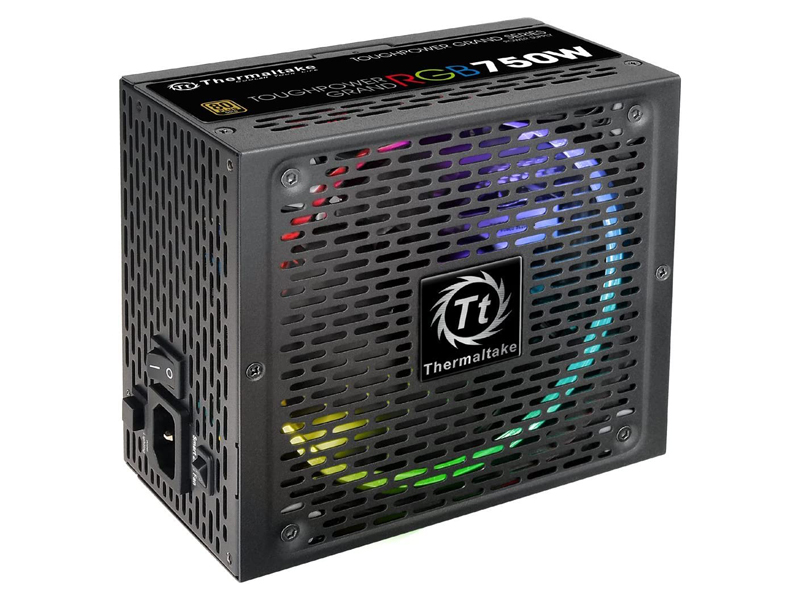

Thermaltake, as the pioneer who incorporates RGB lights into PSU, has launched the Thermaltake Toughpower Grand RGB Gold Series, coming with a pre-installed, patented 256 Colors Riing 14 RGB fan with 5 lighting modes to choose from and built-in memory.

Featuring capacities ranging from 650W to 850W and 80 PLUS Gold certification, Toughpower Grand RGB Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstances.

•   P/N: PS-TPG-0750FPCGxx-R

•   Short P/N: TPG-0750F-R

•   Model: TPG-750AH3FSG-R

•   Type: ATX 12V v2.4 and EPS v2.92

•   Max. Output Capacity: 750W

•   Peak Output Capacity: 900W

•   Color: Black

•   Dimension (W / H / D ): 150mm(W) x 86mm(H) x 160mm(D)

•   PFC (Power Factor Correction): Active PFC

•   Power Good Signal: 100-500 msec

•   Hold Up Time: > 16msec at 100% of full load

•   Input current: 10A

•   Input Frequency Range: 50Hz - 60Hz

•   Input Voltage: 100V – 240V~

•   Operating Temperature: 0°C to + 50°C

•   Operating Humidity: 20% to 90%, non-condensing

•   Storage Temperature: -40°C to + 70°C

•   Storage Humidity: 20% to 95%, non-condensing

•   Cooling System: 14cm hydraulic bearing fan

•   Efficiency: Meet 80 PLUS®Gold at 115Vac input.

•   MTBF: 120,000 hrs minimum

•   Safety Approval : E/cTUVus/TÃœV SÃœD/FCC/CCC/BSMI/EAC

•   Protection: OVP,SCP,OPP,UVP,OTP,OCP

•   PCI-E Connector: 4
