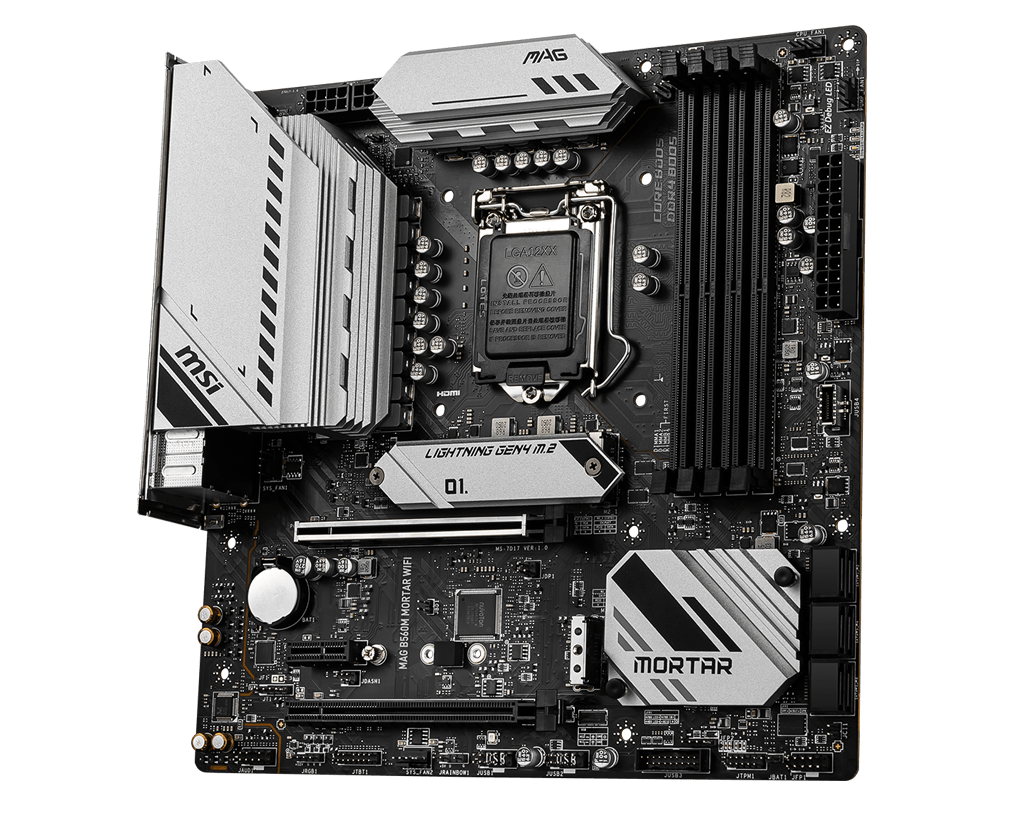

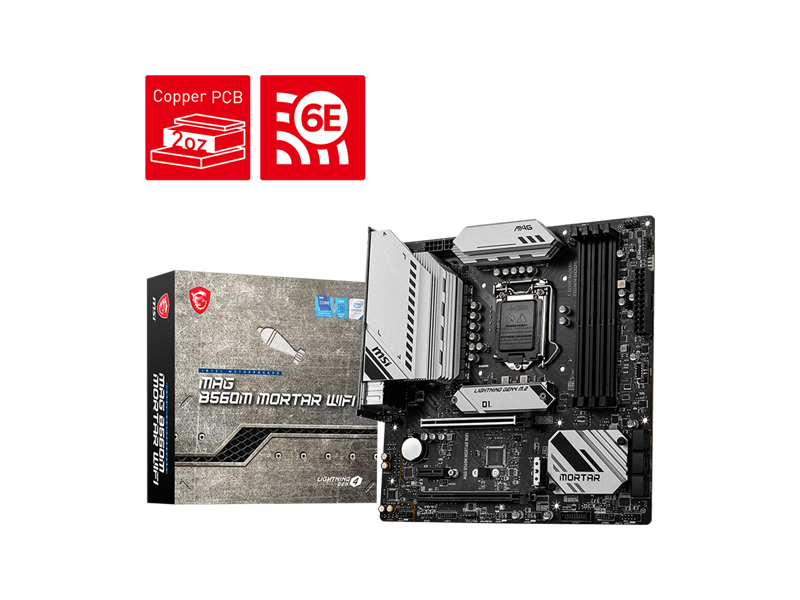

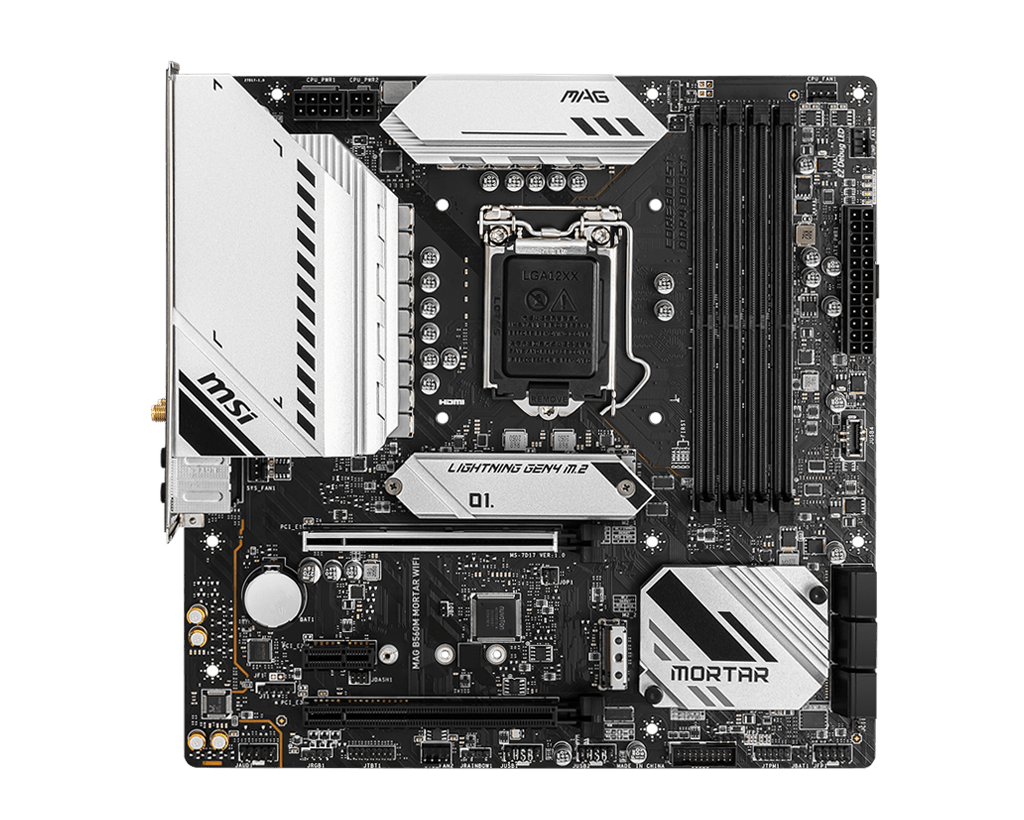

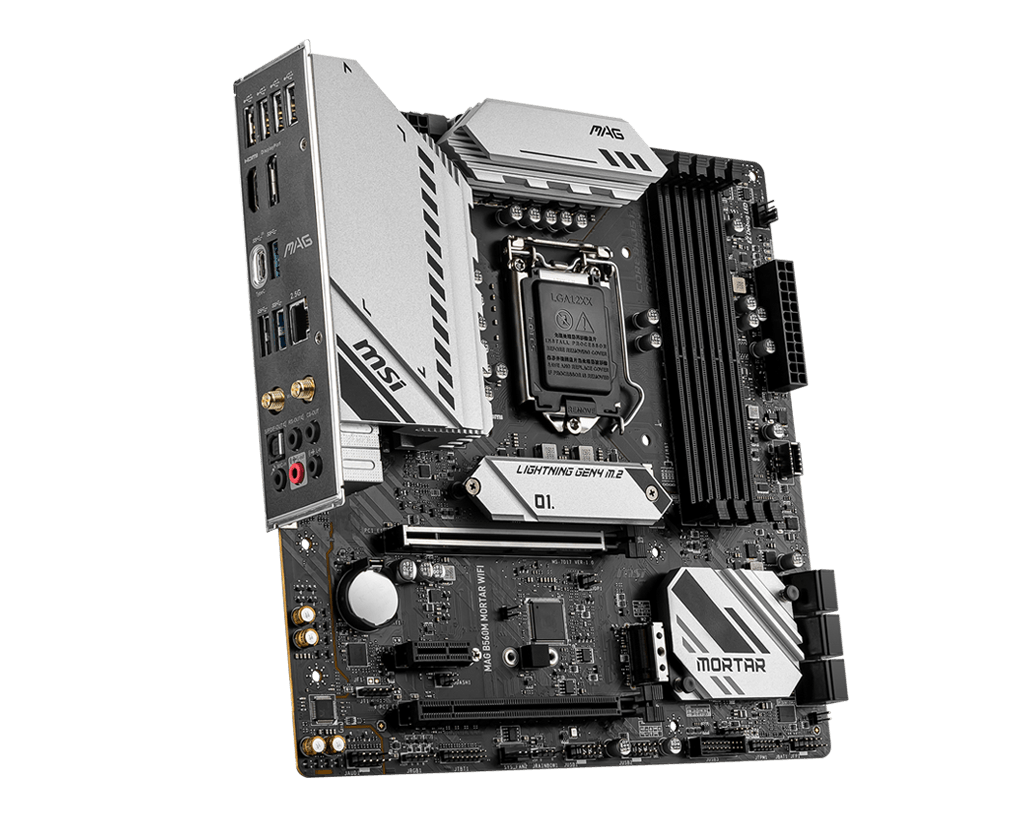

MSI B560 1200 4DDR4 6G M.2 U3.2 A+C WIFI 6E BT DP+HDMI ARGB MATX(243312)

Product Number:
MB-MAG-B560M-MORTAR-WIFI
Manufacturer:
MSI

•     Model Name: MAG B560M MORTAR WIFI

•     CPU Support: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

•     CPU Socket: LGA 1200

•     Chipset: Intel B560 Chipset

•     Graphics Interface: 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot, Support 2-way AMD CrossFire Technology

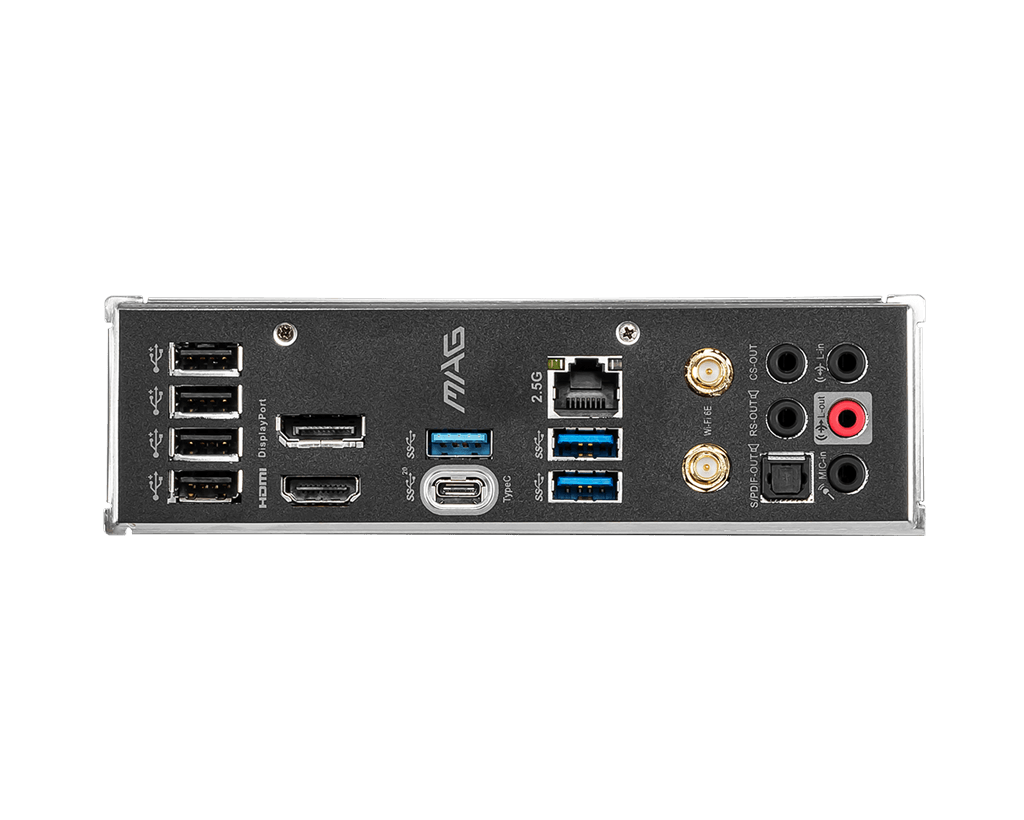

•     Display Interface: HDMI, Displayport - Requires Processor Graphics

•     Memory Support: 4 DIMMs, Dual Channel DDR4-5066(OC)Mhz

•     Expansion Slots: 1x PCIe 3.0 x1 slot

•     Storage: 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slots, 6x SATA 6Gb/s ports

•     USB ports: 1x USB3.2 Gen 2x2 20Gbps (Type-C), 1x USB 3.2 Gen 2 10Gbps (Type-C), 5x USB 3.2 Gen 1 5Gbps (Type-A), 8x USB 2.0

•     LAN: Realtek 8125B 2.5G LAN

•     Wi-Fi/Bluetooth: Intel Wi-Fi 6E AX210, Bluetooth 5.2

•     Audio: 8-Channel (7.1) HD Audio with Audio Boost (ALC897)
