Product Number:

CSE-CA-H510B-B1

Manufacturer:

NZXT

This compact mid-tower is an ideal case for the majority of builds. The H510 is easy-to-build-in and offers flexibility for a variety of ATX parts.

•   Iconic cable management bar and uninterrupted tempered-glass side panel

•   USB 3.2 Gen2-compatible USB-C connector on the front panel

•   Cable routing kit with pre-installed channels and straps

•   Two Aer F120mm fans and removable filter on PSU intake

•   Removable bracket designed for radiators up to 280mm

Dimensions

•   Height 460mm / 18.11 inches

•   Width 210mm / 8.27 inches

•   Depth 428mm / 16.85 inches



Weight

•   6.6 kg / 14.55 lb



Compatibility & Clearance

•   Max CPU Cooler Clearance: 165mm

•   Max GPU Clearance: 381mm

•   Front Fan & Radiator Clearance: 60mm

•   Cable Management: 19 – 23 mm

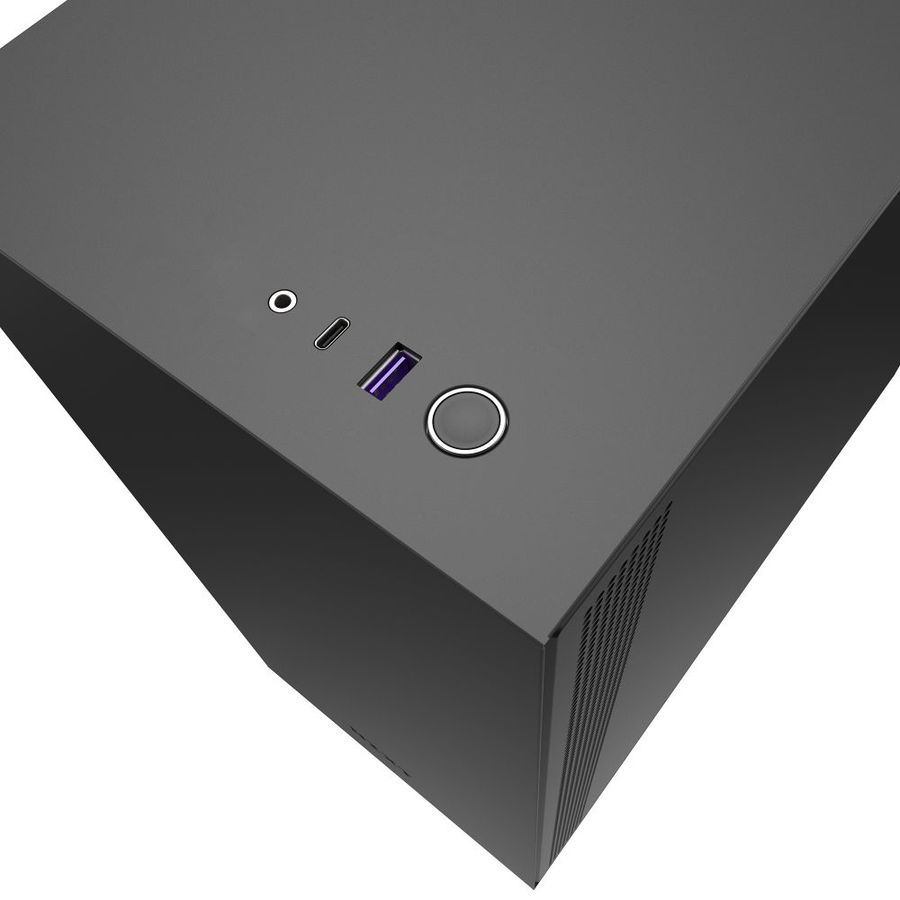

Front I/O Ports

•   USB 3.2 Gen 1 Type-A: 1

•   USB 3.2 Gen 2 Type-C: 1

•   Headset Audio Jack: 1

Expansion Slots

•   Standard: 7



Drive Bays

•   2.5” 2 + 1

•   3.5” 2 + 1

•   Front: 2 x 120mm / 2 x 140mm

•   Top: 1 x 120mm / 1 x 140mm

•   Rear: 1 x 120mm

•   Filters: All air intakes

Radiator Support

•   Front: 280mm

•   Rear: 120mm



Fan Spec

•   Model: Aer P 120mm (Case Version)

•   Speed: 1,200 ± 200RPM

•   Airflow: 50.42 CFM

•   Noise: 28 dBA

•   Fan Connector: 3-pin
